Lec 06 - Call Stacks, Arrays

Slides:

CS1010 AY24/25 S1 Lecture 6

Lecture Slides

Call Stack

Stack Frame

We can think of the frame as a portion of stack. The latter is a portion of the memory in our computer. The memory allocated to each function call is called a stack frame. When a function returns, the stack frame is deallocated and freed up for other uses.

Now, we introduce how to draw the stack fram using the following example

long add(long a, long b) {
  long sum;
  sum = a + b;
  return sum;
}

int main()
{
  long x = 1;
  long y;
  y = add(x, 10);
}

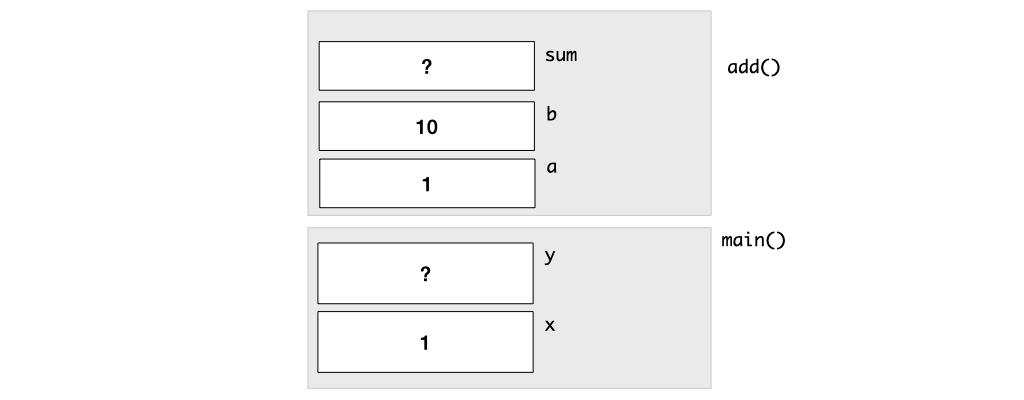

Below is the stack frame diagram when the stack frame for add() is created.

Stack Frame

This kind of diagram will be useful in future analysis about recursion and pointer. It may also come out in the exam paper.

Fixed-Length Array

Array Declaration

long list[10];

We use the square bracket [ and ] to indicate that the variable list is an array. The number 10 indicates that marks holds 10 long values. The size of the array must be an integer value, not a variable.

Remeber this because it will help you in later units which may contain its variants.

Pointer

long *a;

Using this way to declare a pointer, its type long means that this pointer (variable) stores the address of a variable of type long.

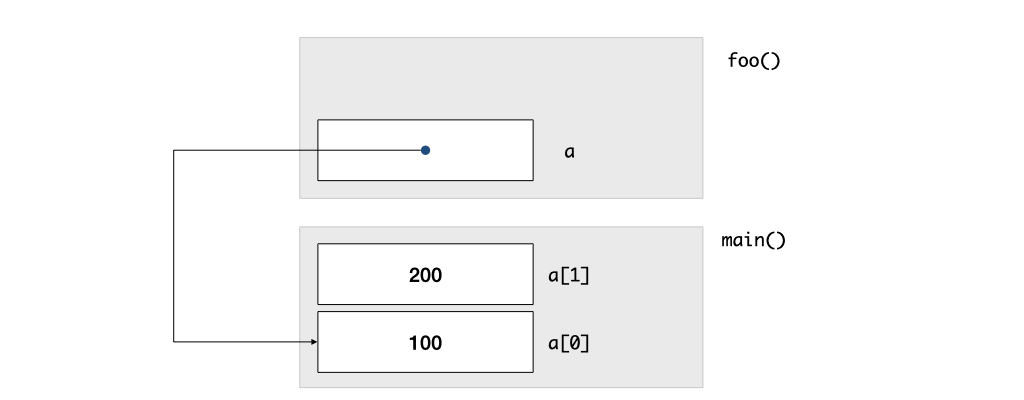

Also, it is important for us to know how to draw the stack-frame diagram containing pointers. Below is an example,

Stack Frame with Pointer

Array Name Decay

long a[2] = {0, 1};
long *array_ptr = a;

Array Name Dacay means that after you define an array, and then you want to use the array name, the array name will decay into just a memory address, not a pointer variable!!!

If you really want to let the array name become a pointer, see Pointer to a Fixed-Size Array

Pass an array to a function

Array is passed by reference in C. Consider the code below:

void foo(long a[2]) {
  a[0] = a[1];
}

int main()
{
  long a[2] = {100, 200};
  foo(a);
  cs1010_println_long(a[0]);
  cs1010_println_long(a[1]);
}

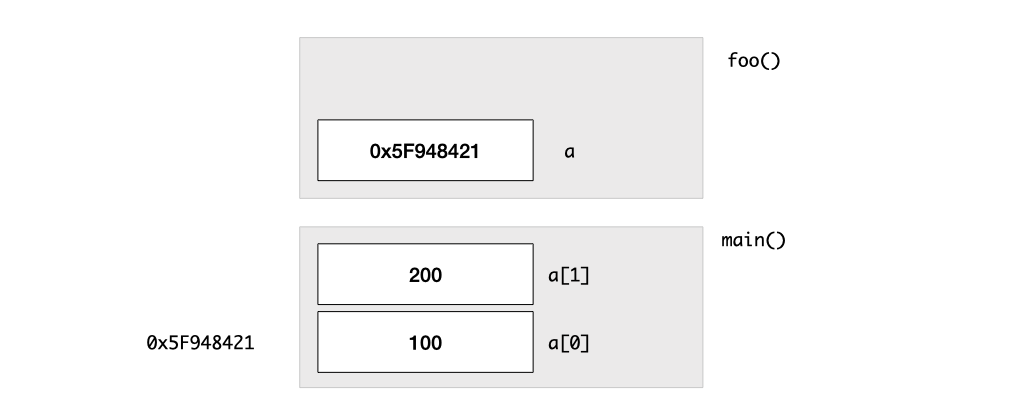

When we call foo, we push the memory address of the array (i.e., of the first element of the array), on the stack. With this memory address, foo can now read the elements of the array a[0] and a[1], by accessing the memory of the array on the stack frame of main. If foo modifies to the array, then the array on the stack frame of main is updated as well.

Pass by reference

This mechanism of passing arguments into a function is called "pass by reference", as opposed to "pass by value", in which we make a copy of the variable on the stack.

Knowing that, let's take a closer look at the declaration of foo, and gain some deeper understanding about passing array to a function in C.

void foo(long a[2]) {
  a[0] = a[1];
}

Here, the parameter long a[2], as you can see from the stack frame figure, actually creates a new pointer variable called a on foo's stack frame. And the content/value of the pointer a is the memory address of the array a which is on the main's stack frame.

This informs us that in C, whenever we pass an array to a function, we are

1. create a local pointer variable in that function's stack frame

2. when we call the function (usually we will pass the memory address of the array using Array Name Decay), then the address of the array we passed will be stored in this local pointer variable.

This is tested in 11. Call Stack Diagramin Final (AY24/25)!
