PE1 Review

Important Concepts

Fixed-Length Array

Declaration and Initialization

The method below declares a fixed-length array of length 10 and initializes some of the elements' value. The elements that are not initialized will be set to 0 instead.

long list[10] = {1, 2, 3, 1, 5, 10, 10, 4, };
// list[8] and list[9] are both initialized to 0

Note that, after the declaration, we can no longer use this technique to reinitialize or initialize the array.

long list[10];
list = {1, 2, 3, 1, 5, 10, 10, 4, 5, 3, };  // error

Passing Fixed-Length Array as Parameter to Functions

There are two ways to pass the array as a parameters to functions.

Passing in the array with [, ] and the constant size of the array.

void foo(long list[10]) {
  :
}

Passing in the array with [, ]

void foo(long len, long list[]) {
  :
}

Note that in method 1, we explicity specify the array length to be 10. So, if you pass an array whose length is not 10, the compiler will generate a warning. But in method 2, len is not explicitly related to list in C, and would have to depend on the comments of the code to tell the reader what len is for.

Return Array from a Function

If you want to return a fixed-length array from a function, please don't do that! There is no meaning of doing that since if you create a fixed-length array in a function, it is stored on the stack. So, after you return from the function call, the memory will be destroyed!

This part is useful if you create an array on the heap in the function, and then you can return the address to that array on the heap.

Pointer

Declaration and Initialization

long *addr;
addr = &c;

Line 1 declares a pointer variable and Line 2 initializes the pointer variable to the address of a long variable c, which is same as making the pointer point to the variable c.

Dynamic-Length Array

size_t

size_t is just a fancy way of saying non-negative integer.

While both size_t and long are integer types, they are not compatible with each other. Explicit casting is needed to assign the value of one type to the other.

malloc() and calloc()

void *calloc(size_t count, size_t size);

calloc allocates memory for count items, each of size number of bytes, in a contiguous region in the memory and initializes all bits in this memory region to 0.

Always use calloc() instead of malloc() since it can initialize the content of the memory address to 0, which saves lots of trouble.

Declare a dynamic-length array

size_t n = cs1010_read_size_t();
long *array = calloc(n, sizeof(long));

When should we use dynamic-length array instead of Fixed-Length Array?

That is when we don't know the length of our array before we run our program (e.g. we may depend on the user input to decide the length of our array)

Passing a Dynamic-Length Array as Parameter to Functions

The most common way we use is to pass the length of the array and the its address

void foo(long len, long *list)
{
    :
}

String

char

To print a char, use putchar()

char x = 'A';
putchar(x);

String

To declare a string, we have two ways

char hello3[] = "hello!";
char *hello4 = "hello!";

However, using the Line 2 version, the string is called a String Literal. And we cannot change the element in a string literal.

Note that Line 1 stores the string on the stack while Line 2 stores the string in a read-only memory. However, the most common way is to store strings on the heap so that we can modify it easily.

To create a string on the heap, we can use the function provided by CS1010 I/O library.

char *word = cs1010_read_word(); // read a word
char *line = cs1010_read_line(); // read a line

Multidimensional Array

Based on our requirements, we may choose what kind of array we want to declare in our code.

A Fixed size 2-D Array

Suppose before we run our program, we already know the dimension of our matrix (num of rows and num of cols). We can use the following method to declare a fixed-size 2-D array.

long matrix[10][20];

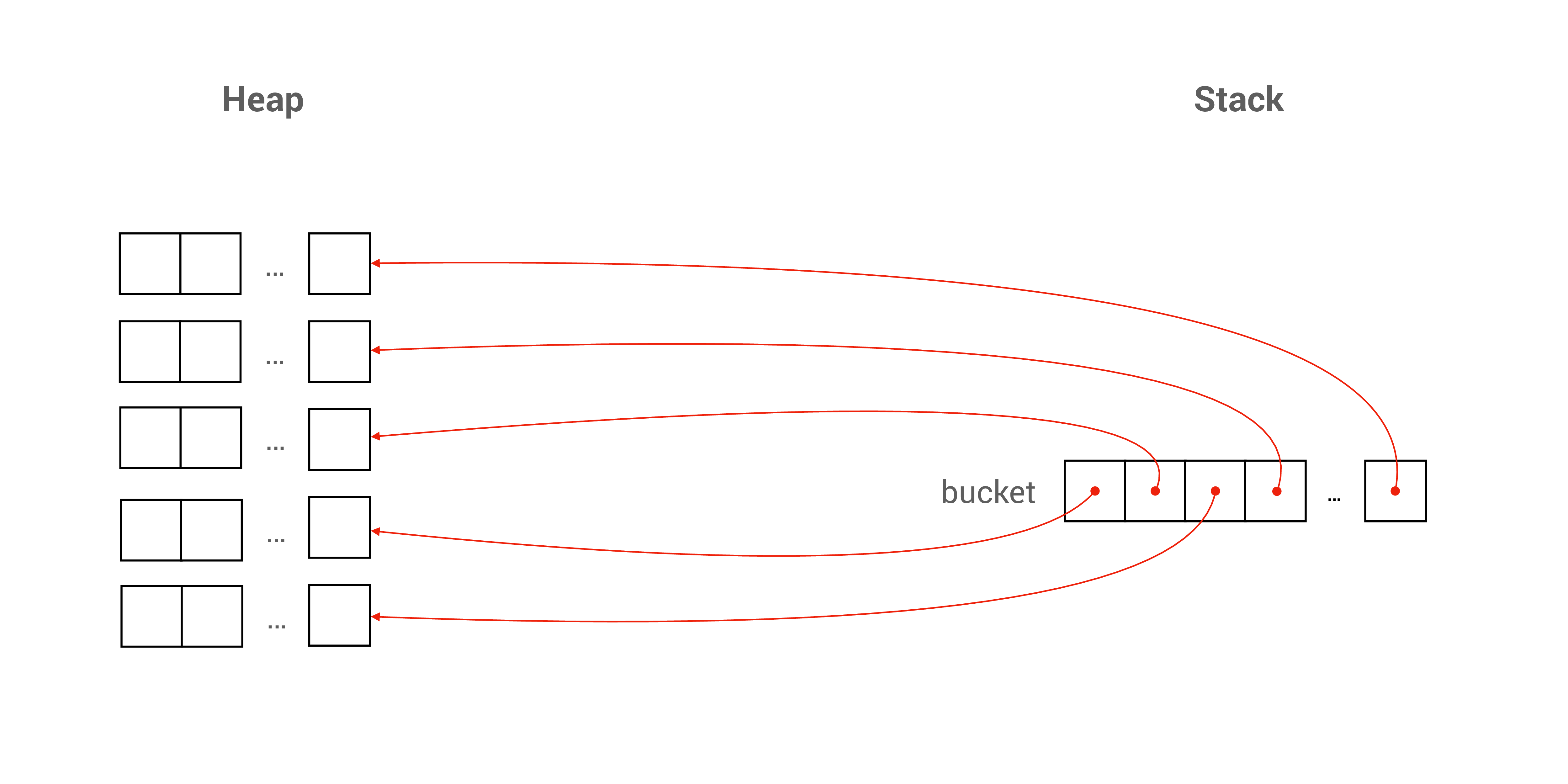

A Fixed-Size Array of Dynamically Allocated Array

This is used when we already know the number of rows in your array before we run our program, but we don't know the number of cols before we run our program. So, we may use dynamic array for each row.

double *buckets[10];
size_t num_of_cols = cs1010_read_size_t();
for (long i = 0; i < 10; i += 1) {
  buckets[i] = calloc(num_of_cols, sizeof(double));
}

Dynamically Size 2D Array

Now, suppose we know neither the number of rows and the number of cols before we run our program. We should use the following convention to declare our dynamically size 2D array.

double **canvas;
size_t num_of_rows = cs1010_read_size_t();
size_t num_of_cols = cs1010_read_size_t();
canvas = calloc(num_of_rows, sizeof(double *)); // note the call to sizeof
for (size_t i = 0; i < num_of_rows; i += 1) {
  canvas[i] = calloc(num_of_cols, sizeof(double));
}

CS1010 I/O Library

Read a single value

`size_t cs1010_read_size_t()`

size_t size = cs1010_read_size_t();

`char* cs1010_read_word()`

Returns a char * pointing to the next white-space-separated string from the standard input.

char* word = cs1010_read_word();
if (word == NULL) {
  // Deal with error
  // No need to free since allocation unsuccessful
} else {
  // Do something with word
  :
  :
  free(word);
}

`char* cs1010_read_line()`

Returns a char * pointing to the next new-line-separated string from the standard input.

char* line = cs1010_read_line();
if (line == NULL) {
  // Deal with error
  // No need to free since allocation unsuccessful
} else {
  // Done something with line
  :
  :
  free(line);
}

Read multiple values

`long* cs1010_read_long_array(size_t k)`

Returns k numbers of long values read from the standard input stored in an array. (Read an array of long).

size_t num_of_students = cs1010_read_size_t();
long *marks;
marks = cs1010_read_long_array(num_of_students);
if (marks == NULL) {
  // signal error and return
  // No need to free marks since allocation unsuccessful
}
for (size_t i = 0; i < num_of_students; i += 1) {
  cs1010_println_long(marks[i]);
}

// do other things to marks
  :

free(marks);

`double* cs1010_read_double_array(size_t k)`

Returns k numbers of double values read from the standard input stored in an array. (Read an array of double).

// Similar to read an array of long

`char** cs1010_read_word_array(size_t k)`

Returns k white-space-separated words read from the standard input stored in an array. The notion of "word" is the same as cs1010_read_word(). (A quicker way to read in a jagged array)

size_t k = cs1010_read_size_t();
char** words = cs1010_read_word_array(k);
if (words == NULL) {
  // Deal with error
  // No need to free words since allocation unsuccessful
} else {
  // Do something with the array words
   :
   :
  for (size_t i = 0; i < k; i += 1) {
    free(words[i]);
  }
  free(words);
}

`char** cs1010_read_line_array(size_t k)`

Returns k new-line-separated words read from the standard input stored in an array. The notion of a line is the same as cs1010_read_line(). (A quicker way to read in a jagged array)

size_t k = cs1010_read_size_t();
char** lines = cs1010_read_line_array(k);
if (lines == NULL) {
  // Deal with error
  // No need to free lines since allocation unsuccessful
} else {
  // Do something with the array lines
    :
    :
  for (size_t i = 0; i < k; i += 1) {
    free(lines[i]);
  }
  free(lines);
}

Using char** cs1010_read_word_array(size_t k) and char** cs1010_read_line_array(size_t k) can save us the trouble from dealing with the inner Null pointer check. We only need to judge whether the pointer returned is NULL or not. (Applies to all four I/O functions here)

Important Functions

Dynmaic-Length 1-D Array

There are four methods provided by CS1010 I/O Library

Read an array of long, use long* cs1010_read_long_array(size_t k)
Read an array of double, use double* cs1010_read_double_array(size_t k)
Read an array of char (word), use char* cs1010_read_word()
Read an array of char (line), use char* cs1010_read_line()

Multidimensional Array

Null Pointer Check

void free_mem(size_t start, size_t end, char **tar)
{
    for (size_t i = start; i < end; i += 1) {
        free(tar[i]);
    }
    free(tar);
}

Combine it with the Dynamically Size 2D Array, we have

size_t n = cs1010_read_size_t();
char **social = calloc(n, sizeof(char *));
if (social == NULL) {
    return 1;
}
for (size_t i = 0; i < n; i += 1) {
    // For a normal jagged array, use calloc(i+1, sizeof(type));
    // For a normal 2-D array, use calloc(num_of_cols, sizeof(double));
    social[i] = cs1010_read_word();
    if (social[i] == NULL) {
        free_mem(0, i, social);
        return 1;
    }
}

Another method is to use char** cs1010_read_word_array(size_t k)

size_t n = cs1010_read_size_t();
char **social = cs1010_read_word_array(n);
if (social == NULL)
{
    return 1;
}

Read a 2-D Array of `long` or `double`

long **read_matrix(size_t nrows, size_t ncols)
{
    // create
    long **m = calloc(nrows, sizeof(long *));
    if (m == NULL) {
        return NULL;
    }
    for (size_t i = 0; i < nrows; i += 1) {
        m[i] = calloc(ncols, sizeof(long));
        if (m[i] == NULL) {
            free_mem(0, i, m);
            return NULL;
        }
    }
    // read
    for (size_t i = 0; i < nrows; i += 1) {
        for (size_t j = 0; j < ncols; j += 1) {
            m[i][j] = cs1010_read_long();
        }
    }
    return m;
}

With this, the usage in main() should be

size_t nrows = cs1010_read_size_t();
size_t ncols = cs1010_read_size_t();
long **matrix = read_matrix(nrows, ncols);
if (matrix == NULL) {
    free(matrix);
    return 1;
}
// free the used memory
for (size_t i = 0; i < nrows; i += 1)
{
    free(matrix[i]);
}
free(matrix);

String

Length of a String

size_t length_of(const char *str)
{
    size_t length = 0;
    while (*str != '\0') {
        length += 1;
        str += 1;
    }
    return length;
}

Traverse through a string

char *str = cs1010_read_word();
if (str == NULL)
{
    return 1;
}
while (*str != '\0')
{
    // do something
    str += 1;
}
free(str);

To traverse from the end of a string (knowing the length of a string), it is recommended to cast the loop variable (e.g. i) as long. For example

void traverse_backward(char *num1, size_t len1)
{
    for (long i = (long)len1 - 1; i >= 0; i -= 1) {
        // do something
    }
}

Cast the string index i to be long! It can save lots of trouble!

Check the existence of a word in a line

bool word_match(char *word, char *line)
{
    while (*word != '\0') {
        if (*word != *line) {
            return false;
        }
        word += 1;
        line += 1;
    }
    return true;
}

Find the position of the first occurrance of a word

In this code, pos stores the first occurrance of a word in the line, if DNE, then it is -1. cur_pos stores the current position of char we are about to match in the line.

long find_pos(char *word, char *line)
{
    long pos = -1;
    long cur_pos = 0;
    while (*line != '\0') {
        if (*word == *line) {
            pos = cur_pos;
            if (word_match(word, line)) {
                return pos;
            }
            pos = -1;
        }
        line += 1;
        cur_pos += 1;
    }
    return pos;
}

String.h

size_t strlen(const char *s), which will return the length of a string as size_t.

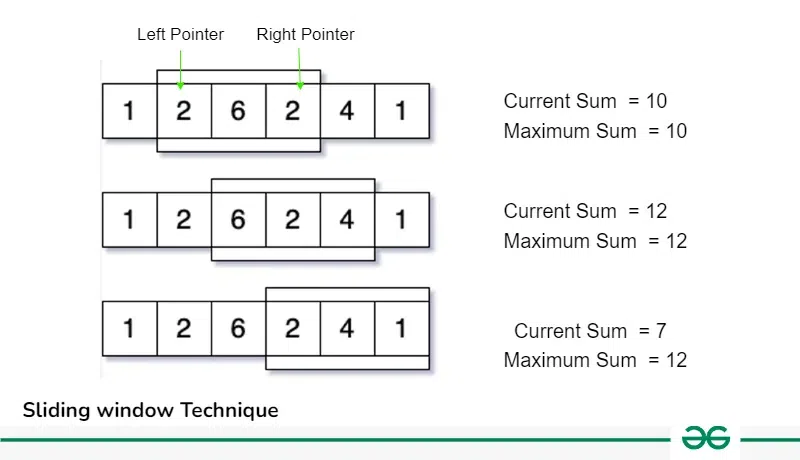

Sliding Window

To find the maximum sum of all subarrays of size K

Given an array of integers of size ‘n’, Our aim is to calculate the maximum sum of ‘k’ consecutive elements in the array.

long maxSum(long arr[], int n, int k)
{
    // n must be greater
    if (n <= k) {
        cs1010_println_string("Invalid");
        return -1;
    }

    // Compute sum of first window of size k
    long max_sum = 0;
    for (long i = 0; i < k; i++)
        max_sum += arr[i];

    // Compute sums of remaining windows by
    // removing first element of previous
    // window and adding last element of
    // current window.
    long window_sum = max_sum;
    for (int i = k; i < n; i++) {
        window_sum += arr[i] - arr[i - k];
        max_sum = max(max_sum, window_sum);
    }

    return max_sum;
}

The most important idea is to remove the first element and add the last element of the current window.

Classic Problem

Write a program social, that reads from standard input two positive integers n and k, followed by n lines of strings consisting of '1' or '0' representing the social network of degree 1 of these n people. Print, to the standard output, the social network of degree k formed by friendship chains of up to k hops.

#include "cs1010.h"

#define FRIEND '1'
#define STRANGER '0'

void free_mem(size_t start, size_t end, char **tar)
{
  for (size_t i = start; i < end; i += 1) {
    free(tar[i]);
  }
  free(tar);
}

void print_result(size_t n, char **social)
{
  for (size_t i = 0; i < n; i += 1) {
    cs1010_println_string(social[i]);
  }
}

bool has_contact_trivial(size_t id1, size_t id2, long deg, char **social)
{
  if (id1 > id2) {
    return social[id1][id2] == (char)deg + '0';
  }
  return social[id2][id1] == (char)deg + '0';
}

bool has_contact(size_t id1, size_t id2, long deg, size_t n, char **social)
{
  if (deg == 1) {
    return has_contact_trivial(id1, id2, 1, social);
  }
  for (size_t k = 0; k < n; k += 1) {
    if (k != id1 && k != id2 && has_contact_trivial(id1, k, deg - 1, social) &&
        has_contact_trivial(k, id2, 1, social)) {
      return true;
    }
  }
  return false;
}

void build_social(size_t n, long deg, char **social)
{
  if (deg == 1) {
    return;
  }
  build_social(n, deg - 1, social);
  for (size_t i = 0; i < n; i += 1) {
    for (size_t j = i + 1; j < n; j += 1) {
      if (social[j][i] == '0' && has_contact(i, j, deg, n, social)) {
        social[j][i] = (char)deg + '0';
      }
    }
  }
}

void temp_to_real(size_t n, char **social)
{
  for (size_t i = 0; i < n; i += 1) {
    for (size_t j = 0; j < i; j += 1) {
      if (social[i][j] != '0' && social[i][j] != '1') {
        social[i][j] = FRIEND;
      }
    }
  }
}

int main()
{
  size_t n = cs1010_read_size_t();
  long deg = cs1010_read_long();

  char **social = calloc(n, sizeof(char *));
  if (social == NULL) {
    return 1;
  }
  for (size_t i = 0; i < n; i += 1) {
    social[i] = cs1010_read_word();
    if (social[i] == NULL) {
      free_mem(0, i, social);
      return 1;
    }
  }

  build_social(n, deg, social);
  temp_to_real(n, social);
  print_result(n, social);

  for (size_t i = 0; i < n; i += 1) {
    free(social[i]);
  }
  free(social);
}

Tips

(char and long difference) Don't mix char and long in your code. For example, casting from long to char (e.g. long 9 to char 9), use (char) 9 + '0'. From char to long (e.g. char 9 to long 9), use '9'-'0'
(size_t always bigger than 0) To avoid the trouble that size_t cannot be negative in the for loop, we can convert them into long explicitly.
(Start and end of 1-D array in the function in recursion) When writing recursion including 1-D Array, pay attention to the inclusiveness of the start and end in your function of recursion.
(Frequency Table of a number) The idea is to treat every digit of a number as the frequency table's index and iterate through each digit to count its frequency.
(2-D Array in solving hard problems) Make wise use of the 2-D Array, while each element's index (i and j) can represent some "relationship" between the i and j. This "relationship" is stored as the value of this element.

PreviousMidterm (AY22/23)NextPE1 (AY23/24)

Last updated 8 months ago

Important Concepts

Fixed-Length Array

Declaration and Initialization

Passing Fixed-Length Array as Parameter to Functions

Return Array from a Function

Pointer

Declaration and Initialization

Dynamic-Length Array

size_t

malloc() and calloc()

Declare a dynamic-length array

Passing a Dynamic-Length Array as Parameter to Functions

String

char

String

Multidimensional Array

A Fixed size 2-D Array

A Fixed-Size Array of Dynamically Allocated Array

Dynamically Size 2D Array

CS1010 I/O Library

Read a single value

size_t cs1010_read_size_t()

char* cs1010_read_word()

char* cs1010_read_line()

Read multiple values

long* cs1010_read_long_array(size_t k)

double* cs1010_read_double_array(size_t k)

char** cs1010_read_word_array(size_t k)

char** cs1010_read_line_array(size_t k)

Important Functions

Dynmaic-Length 1-D Array

Multidimensional Array

Null Pointer Check

Read a 2-D Array of long or double

String

Length of a String

Traverse through a string

Check the existence of a word in a line

Find the position of the first occurrance of a word

String.h

Sliding Window

To find the maximum sum of all subarrays of size K

Classic Problem

Ex5 Q6 Social

Tips

`size_t cs1010_read_size_t()`

`char* cs1010_read_word()`

`char* cs1010_read_line()`

`long* cs1010_read_long_array(size_t k)`

`double* cs1010_read_double_array(size_t k)`

`char** cs1010_read_word_array(size_t k)`

`char** cs1010_read_line_array(size_t k)`

Read a 2-D Array of `long` or `double`
